BYO Cardiff
Article 1021
Benefits of the BYO Cardiff:
- Modular system allowing devices to be easily adaptable.
- Colour themes available: Happy, Crazy, Sweet and Nature.
- Available in any standard RAL colour.
- Ropes are available in the colours: reed, blue, green and black.
- TÜV certified.
Product description

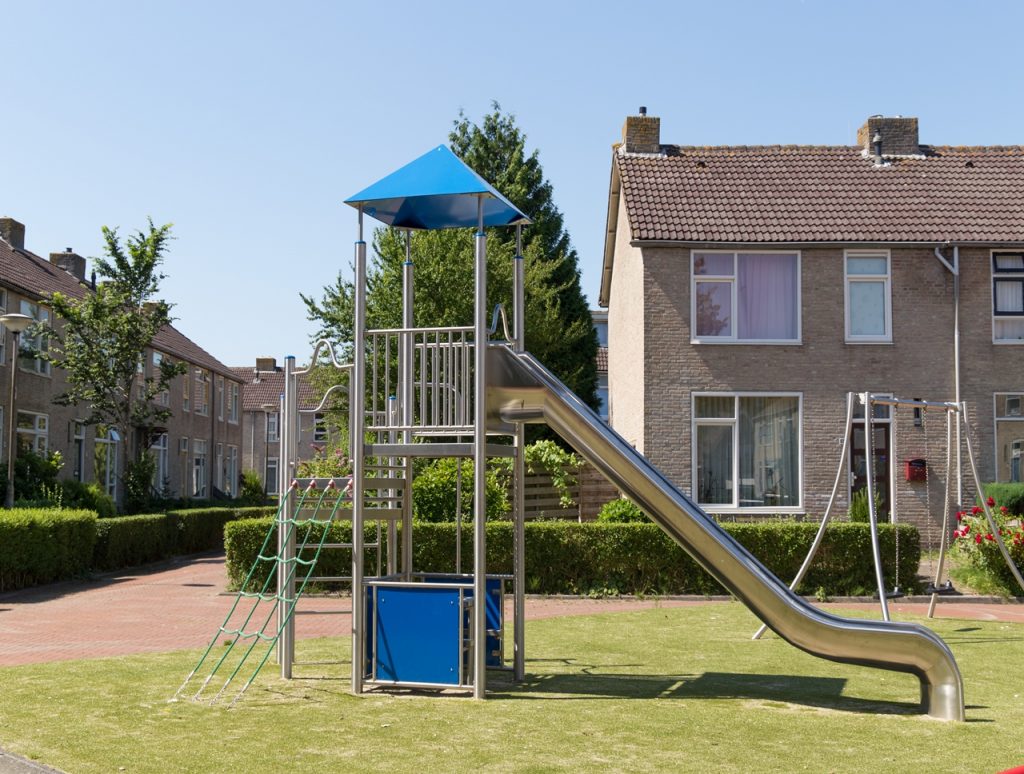

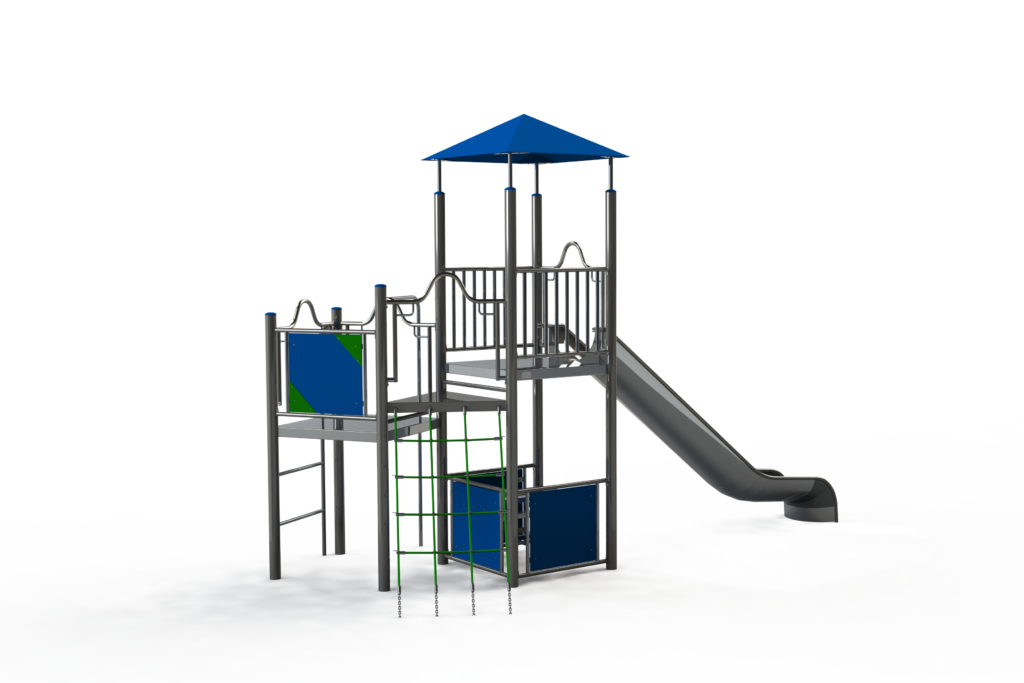

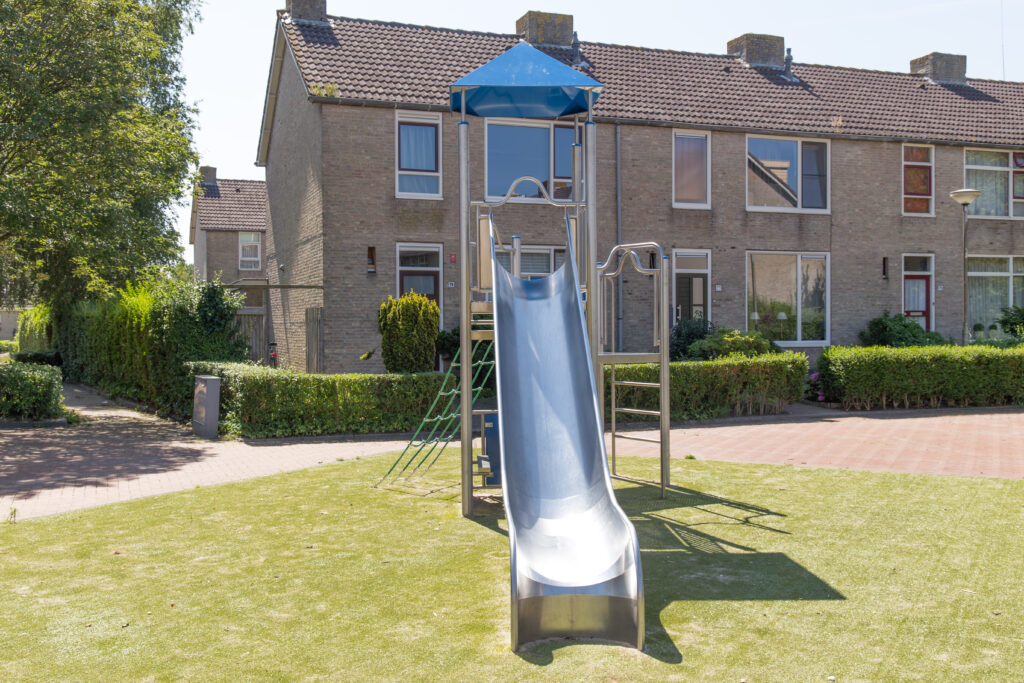

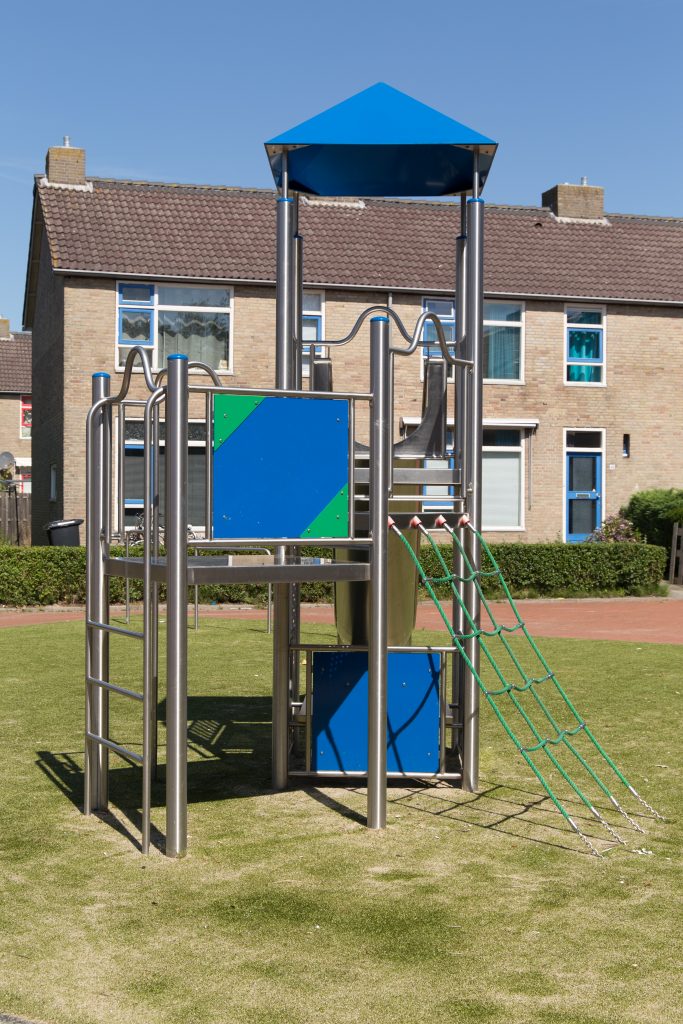

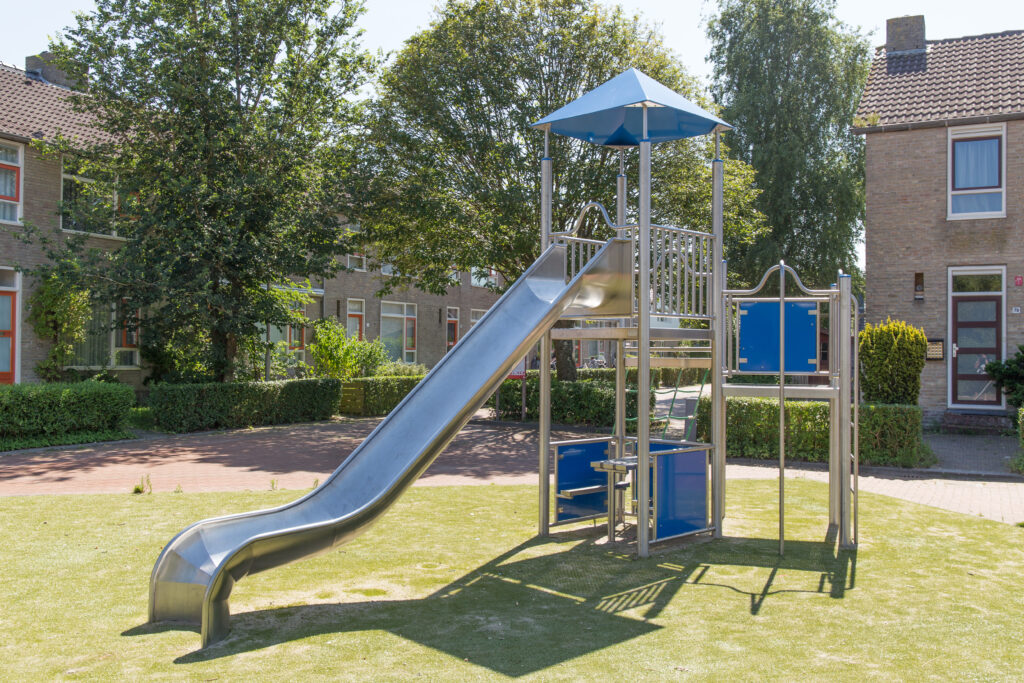

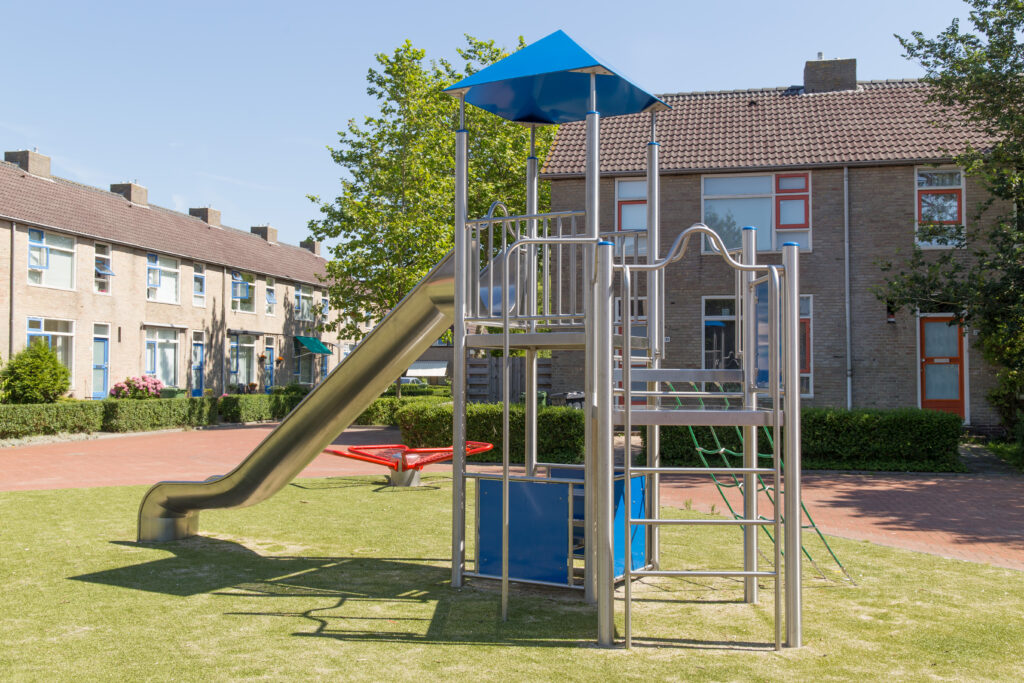

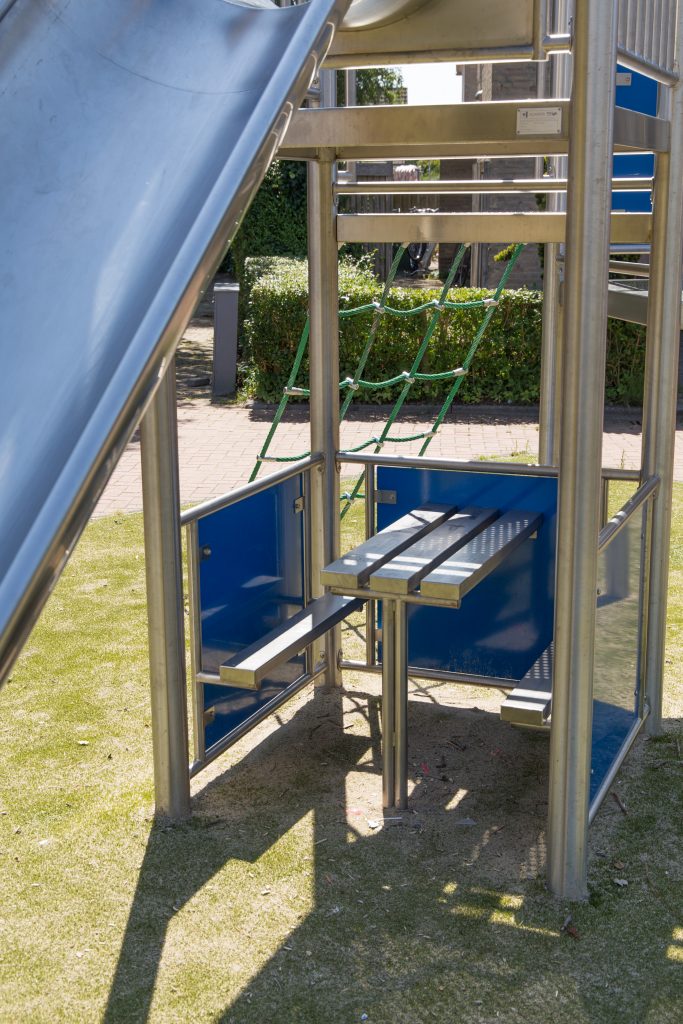

The BYO Cardiff has a climbing platform and watchtower where children can meet. Furthermore, the BYO Cardiff has the playing elements: slide, climbing net, fire pole and a playhouse with table and benches. The BYO Cardiff is standard equipped with a blue roof, blue panels at the bottom, a blue/green panel at the top and a green climbing net.
Play Values of the BYO Cardiff:
- Meeting & Fantasy
- Slide
- Climbing, ladder
- Sliding pole
Download PDF
1021-R05-INS.pdf 567 KB
1021-R05-INS.dwg 7 MB
Maak account aan om meer bestanden te zien
Dimensions
(LxWxH)
5,38 x 2,57 x 3,72 m
Age
min-max
5 - 10 years
Fall height
1,69 m
| Tags | Blog Glijden Klettern Klimmen Sliding |
|---|---|
| Article | 1021 |
| Description | BYO Cardiff |
| Age category as of | 5 |
| Age category up to | 10 |
| Length of equipment | 5,38 m |
| Width of equipment | 2,57 m |
| Height of equipment | 3,72 m |
| Safezone length | 8,90 m |
| Safezone width | 5,60 m |
| Fall height | 1,69 m |
| Foundation m2 (min. calculation) | 52,15 m² |
| Total weight | 558 kg |
| Heaviest part | 78 kg |
| Number of people | 11 |
| Assembly hours (couple) | 19 |
| Materials (inc. percentage) | RVS (99,5) Polyester (0,5) |
| Construction materials | RVS (buis 88,9x3mm en vloer 2,5mm), Polyester touw met stalen kern Ø16 mm, bevestigingsmaterialen: Torx M8x16 en stelschroef M8x10 |
