Mosquito
Article 1322
Benefits of the Mosquito:
- Abstract shapes stimulate children’s fantasy.
- Through the insect shapes, the children unconsciously gather knowledge about insects and nature.
- Available in any standard RAL colour.
- EPDM rubber is available in multiple colours.
- TÜV certified.
Product description

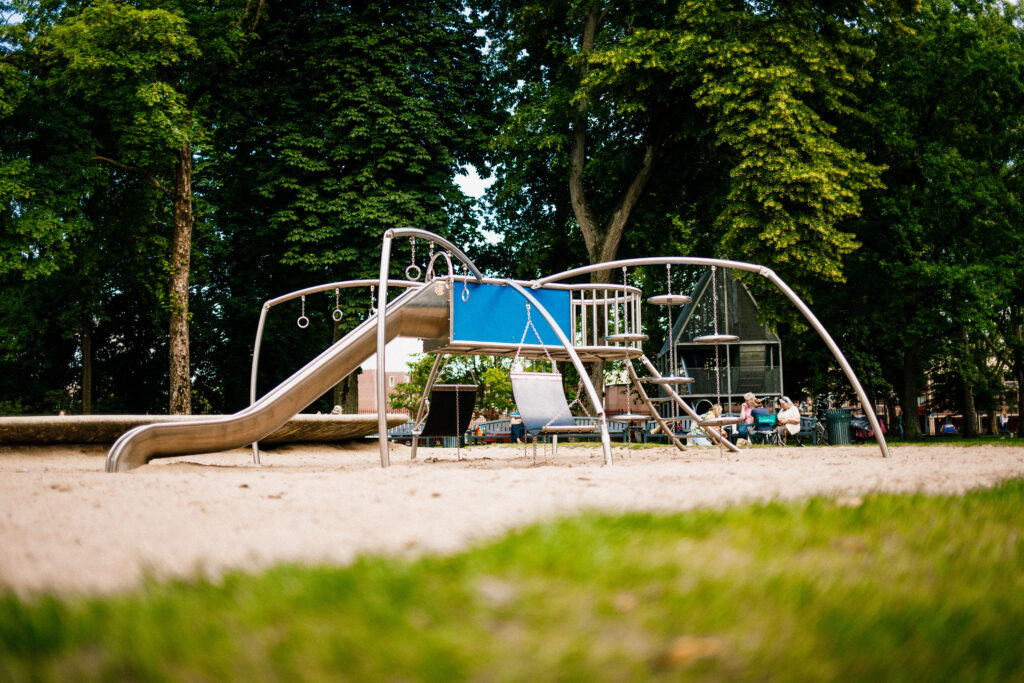

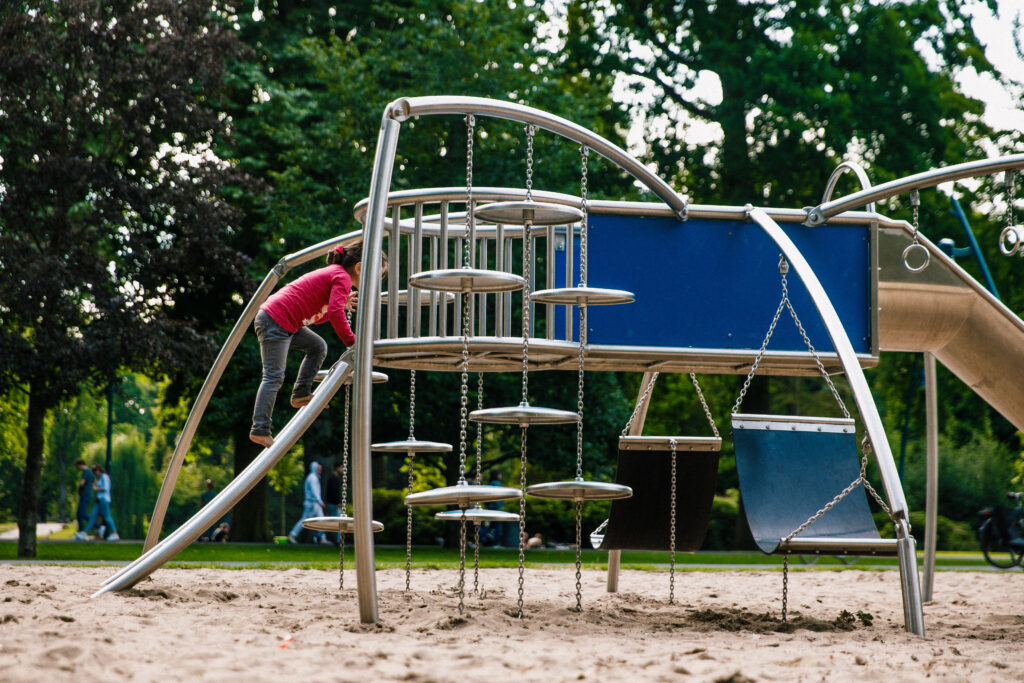

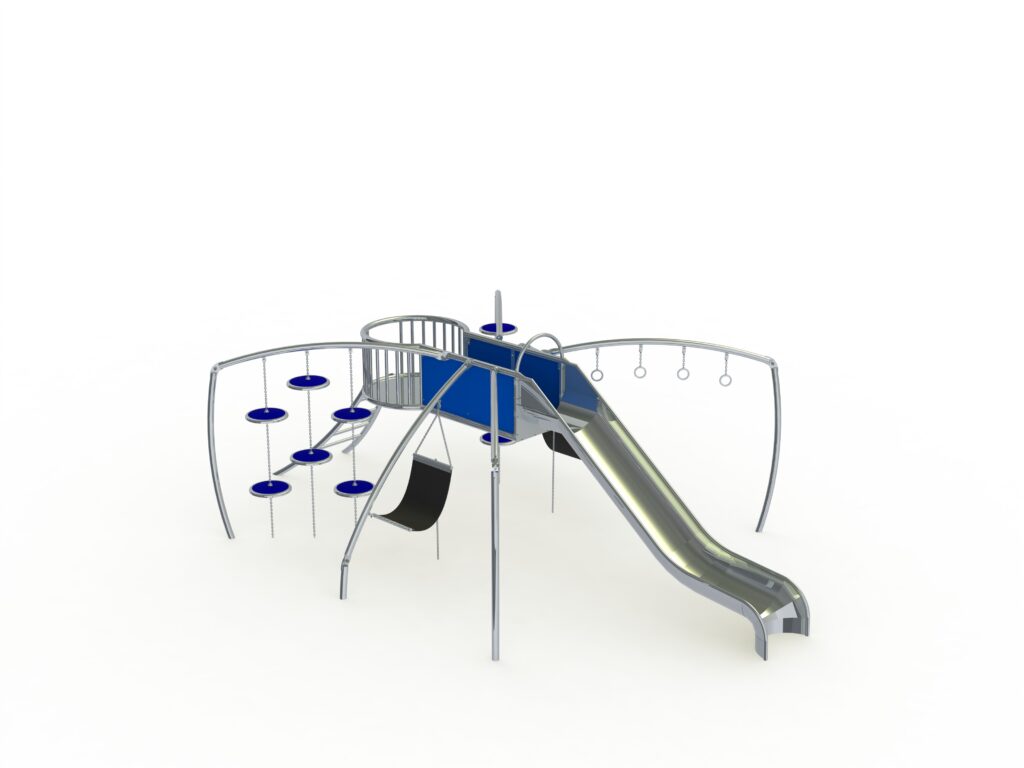

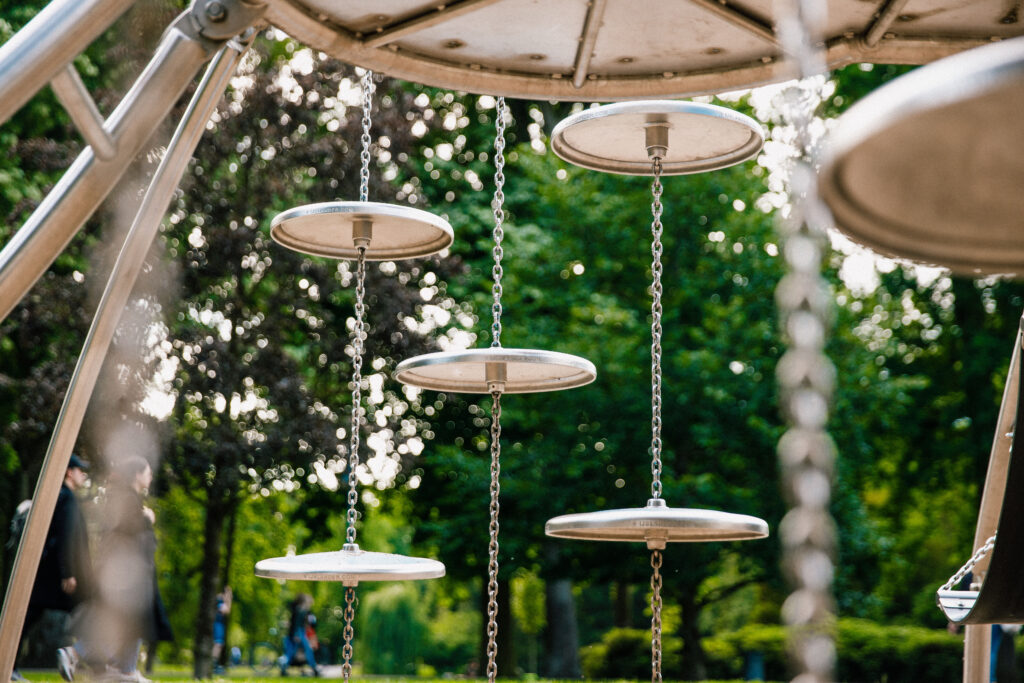

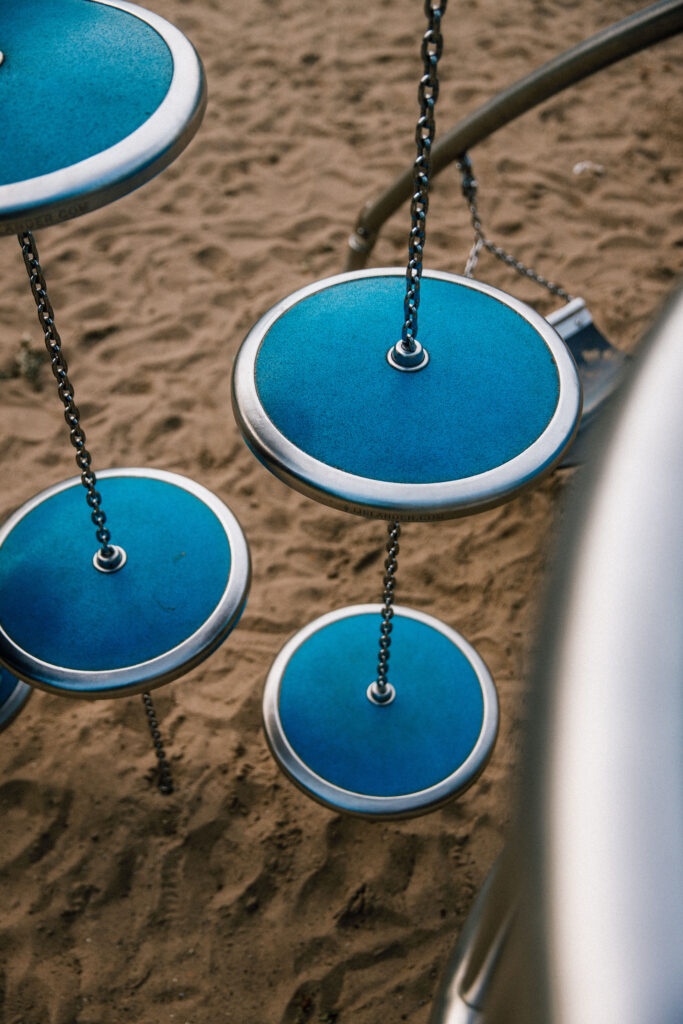

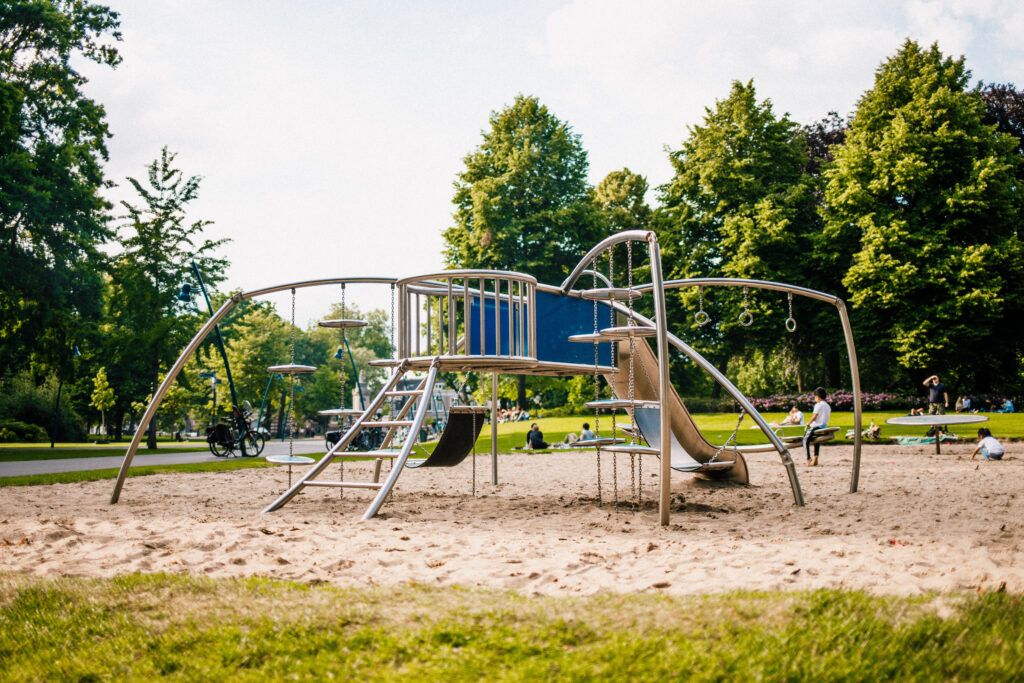

The Mosquito is an abstract climbing mosquito with a watchtower as its ‘body’ where children can play. Play Reasons of Mosquito: a slide, climbing poles, spinning climbing plates, a ladder, clamber and hang rings and two hammocks. The Mosquito is standard equipped with blue coated panels, blue EPDM on the climbing disks and a black rubber hammock.
Play values of the Mosquito:
- Meeting & Fantasy
- Climbing
- Sliding
- Spinning
- Resting
- Hanging
Download PDF
1322-R03-INS.pdf 749 KB
1322-R03-INS.dwg 6 MB
Maak account aan om meer bestanden te zien
Dimensions
(LxWxH)
6,1 x 4,45 x 2,12 m
Age
min-max
0 - 0 years
Fall height
1,23 m
| Tags | Blog Crawling Draaien Glijden Hiding Klettern Klimmen Kruipen Sliding Spinning Verstoppen |
|---|---|
| Article | 1322 |
| Description | Mosquito |
| Length of equipment | 6,10 m |
| Width of equipment | 4,45 m |
| Height of equipment | 2,12 m |
| Safezone length | 9,70 m |
| Safezone width | 7,45 m |
| Fall height | 1,23 m |
| Total weight | 497 kg |
| Heaviest part | 110 kg |
| Number of people | 28 |
| Assembly hours (couple) | 19 |
| Materials (inc. percentage) | RVS (97) EPDM (3) |
| Construction materials | RVS (buis 33,7x2 en 20x2 en 60,3x3mm, strip 40x8mm, plaat 2500x1250x3mm, koker 100x40x2mm, schijf 60,3x3mm, glijgoot, ketting 6mm) rubber, EPDM, bevestigingsmateriaal: torx met pin M8x40, M8x30, M8x16, M8x20, dopmoerM8, borgmoer M8, sluitring M8, bout M16x40, moer M16, sluitring M16, kruisscharnier |
