Madera Climbing Frame
Article 1408
Benefits of the Madera Climbing frame:
- Play equipment with a natural look for natural playgrounds.
- Transparent play equipment, keeping sight lines open.
- Ropes are available in the colours: reed, blue, green and black.
- EPDM rubber is available in multiple colours.
- TÜV certified.
Product description

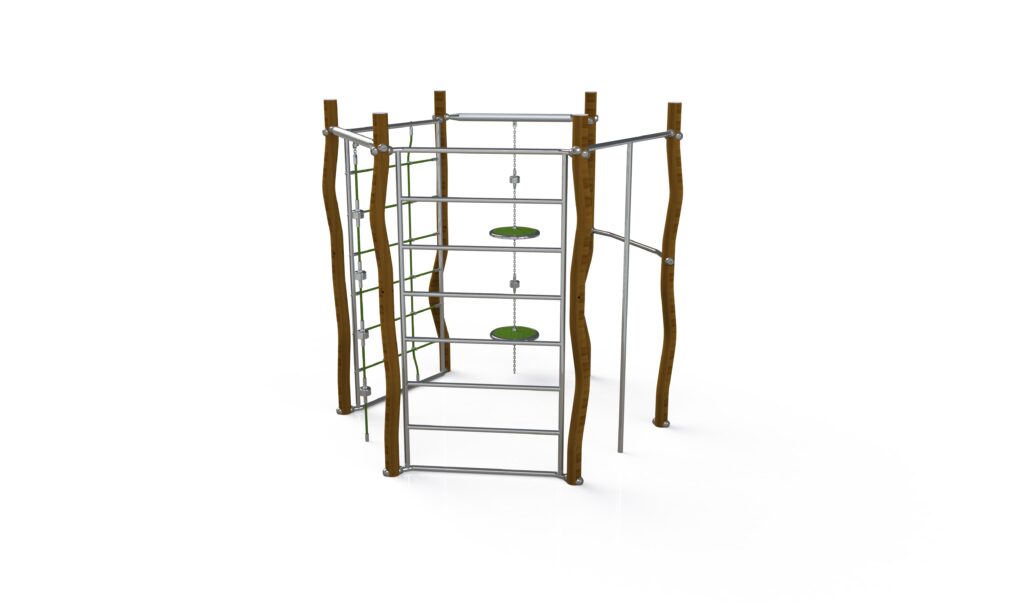

Several children can climb and tumble at the same time on the Madera Climbing frame. At the same time, the curved poles, with the special, strong light-brown coating, stimulate the imagination of children playing, because a curve like that could be anything. Play elements of Madera Climbing frame: a ladder, climbing net, climbing and sliding pole, rotating climbing plates, tumble bar and climbing rope. The Madera Climbing frame is standard equipped with green ropes and green EPDM on the climbing plates.
Play values of the Madera Climbing frame:
- Meeting & Fantasy
- Climbing
- Tumbling
- Spinning
- Sliding pole
Download PDF
1408-R07-INS.pdf 354 KB
1408-R07-INS.dwg 3 MB
Maak account aan om meer bestanden te zien
Dimensions
(LxWxH)
2,47 x 2,14 x 2,3 m
Age
min-max
5 - 10 years
Fall height
2,3 m
| Tags | Draaien Duikelen Klettern Klimmen Spinning Tumbling |
|---|---|
| Article | 1408 |
| Description | Madera Climbing Frame |
| Age category as of | 5 |
| Age category up to | 10 |
| Length of equipment | 2,47 m |
| Width of equipment | 2,14 m |
| Height of equipment | 2,30 m |
| Safezone length | 5,80 m |
| Safezone width | 5,50 m |
| Fall height | 2,3 m |
| Foundation m2 (min. calculation) | 32,07 m² |
| Total weight | 250 kg |
| Heaviest part | 23 kg |
| Number of people | 11 |
| Assembly hours (couple) | 13 |
| Materials (inc. percentage) | RVS (95) Polyester (4) EPDM (1) |
| Construction materials | RVS (Madera staander 88,9x3mm, Ketting 6mm, gietdelen, klimschotel, EPDM, touw polyester 16mm, buis 80x3mm, plaat 3mm, buis 33,7x3mm, buis 60,3x3mm), bevestigingsmateriaal: Imbusbout M12x35, M12x110 en M12x230, dopmoer M12 |
