Butterfly
Article 1320
Benefits of the Butterfly
- Abstract shapes stimulate children’s fantasy.
- Through the insect shapes, the children unconsciously gather knowledge about insects and nature.
- Available in any standard RAL colour.
- EPDM rubber is available in multiple colours.
- TÜV certified.
Product description

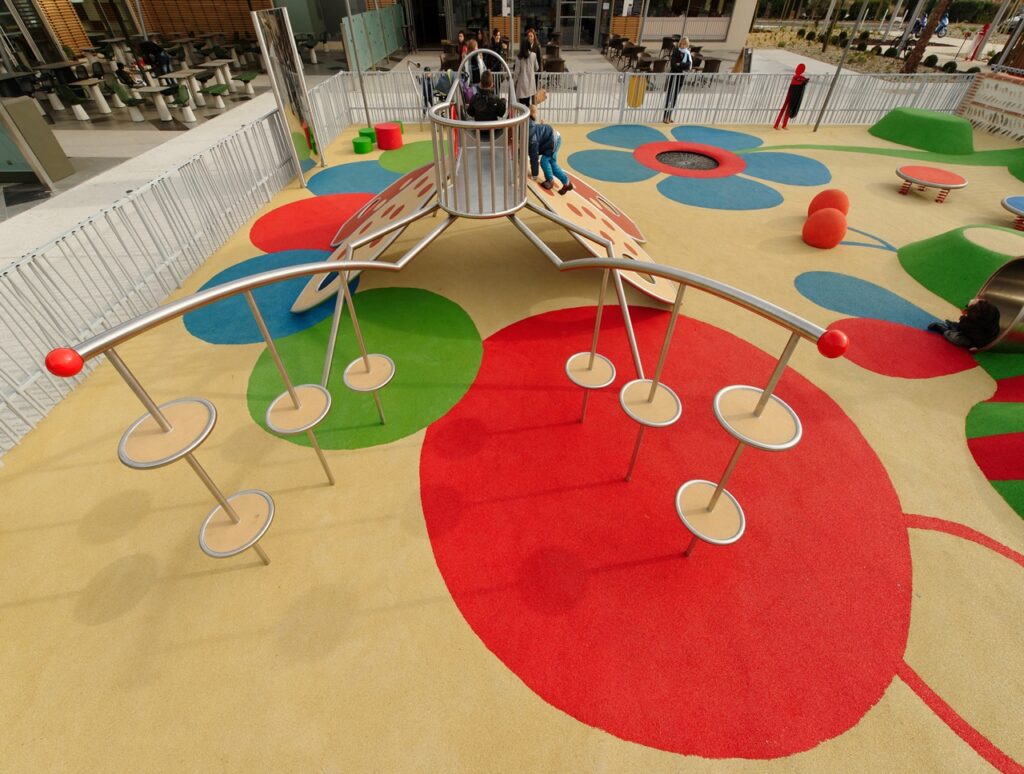

The Butterfly is an abstract climbing butterfly with a watchtower as its ‘body’ where children can play. But they can also hide underneath the wings. Play Reasons of the Butterfly: a slide, climbing poles, climbing dishes, climbing and hiding wings. The Butterfly is standard equipped with red coated antennae.
Play values of the Butterfly:
- Meeting & Fantasy
- Climbing
- Sliding
- Spinning
Download PDF
1320-R03-INS.pdf 345 KB
1320-R03-INS.dwg 2 MB
Maak account aan om meer bestanden te zien
Dimensions
(LxWxH)
6,99 x 4,18 x 2,13 m
Age
min-max
5 - 10 years
Fall height
1,23 m
| Tags | Blog Glijden Hiding Klettern Klimmen Sliding Verstoppen |
|---|---|
| Article | 1320 |
| Description | Butterfly |
| Age category as of | 5 |
| Age category up to | 10 |
| Length of equipment | 6,99 m |
| Width of equipment | 4,18 m |
| Height of equipment | 2,13 m |
| Safezone length | 10,50 m |
| Safezone width | 7,23 m |
| Fall height | 1,23 m |
| Foundation m2 (min. calculation) | 75,92 m² |
| Total weight | 956 kg |
| Heaviest part | 212 kg |
| Number of people | 30 |
| Assembly hours (couple) | 19 |
| Materials (inc. percentage) | RVS (98) EPDM (2) |
| Construction materials | RVS (buis 48,3x3 en 33,7x2 en 20x2 en 50x3mm, strip 20x8mm, koker 40x40x3 en 100x40x2mm, schijf 60,3x3mm, hoekstuk 40x40x4mm, glijgoot) EPDM, bevestigingsmateriaal: torx M8x30, borgmoer M8, sluitring M8 |
