Caterpillar
Article 1338
Benefits of the Caterpillar:
- Abstract shapes stimulate children’s fantasy.
- Through the insect shapes, the children unconsciously gather knowledge about insects and nature.
- Stimulates movement and interaction.
- Available in any standard RAL colour.
- EPDM rubber is available in multiple colours.
- TÜV certified.
Product description

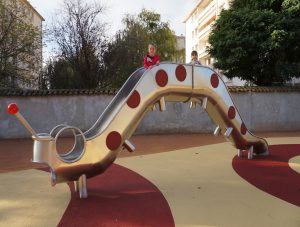

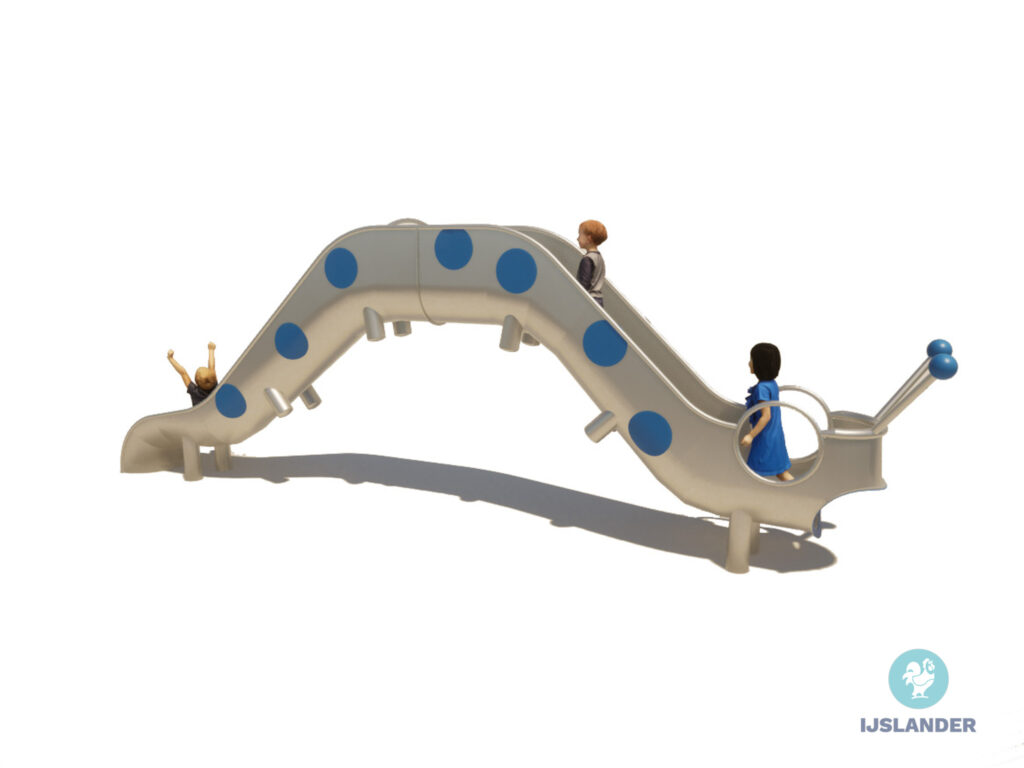

The Caterpillar is a playful, abstract caterpillar with funny antennae where small children can climb on, crawl on and slide down from. Play element: climbing steps, low viewing height, slide and learning numbers on the steps. The Caterpillar is standard equipped with read coated antennae and red EPDM rubber for the mouth and dots.
Play values of the Caterpillar:
- Meeting & Fantasy
- Climbing
- Crawling
- Sliding
Download PDF
1338-R03-INS.pdf 217 KB
1338-R03-INS.dwg 2 MB
Maak account aan om meer bestanden te zien
Dimensions
(LxWxH)
6,5 x 0,89 x 2,22 m
Age
min-max
2 - 10 years
Fall height
1,45 m
| Tags | Blog climbing Discovery Glijden Klimmen Ontdekken Sliding |
|---|---|
| Article | 1338 |
| Description | Caterpillar |
| Age category as of | 2 |
| Age category up to | 10 |
| Length of equipment | 6,50 m |
| Width of equipment | 0,89 m |
| Height of equipment | 2,22 m |
| Safezone length | 10,00 m |
| Safezone width | 3,90 m |
| Fall height | 1,45 m |
| Foundation m2 (min. calculation) | 38,90 m² |
| Total weight | 644 kg |
| Heaviest part | 354 kg |
| Number of people | 8 |
| Assembly hours (couple) | 16 |
| Materials (inc. percentage) | RVS (99) EPDM (1) |
| Construction materials | RVS (buis 139,7x2 en 48,3x3 en 40x3mm, lasverloop 60,3x33,7x2mm, plaat 2500x1250x3mm, ring ø60,3x3,65mm, lasbodem 139,7 xmm, koker 100x40x2mm, glijgoot) regupol, bevestigingsmateriaal: torx M8x20, dopmoer M8 |
