BYO Abu Dhabi
Article 1011
Benefits of the BYO Abu Dhabi:
- Modular system allowing devices to be easily adaptable.
- Colour themes available: Happy, Crazy, Sweet and Nature.
- Available in any standard RAL colour.
- Ropes are available in the colours: reed, blue, green and black.
- TÜV certified.
Product description

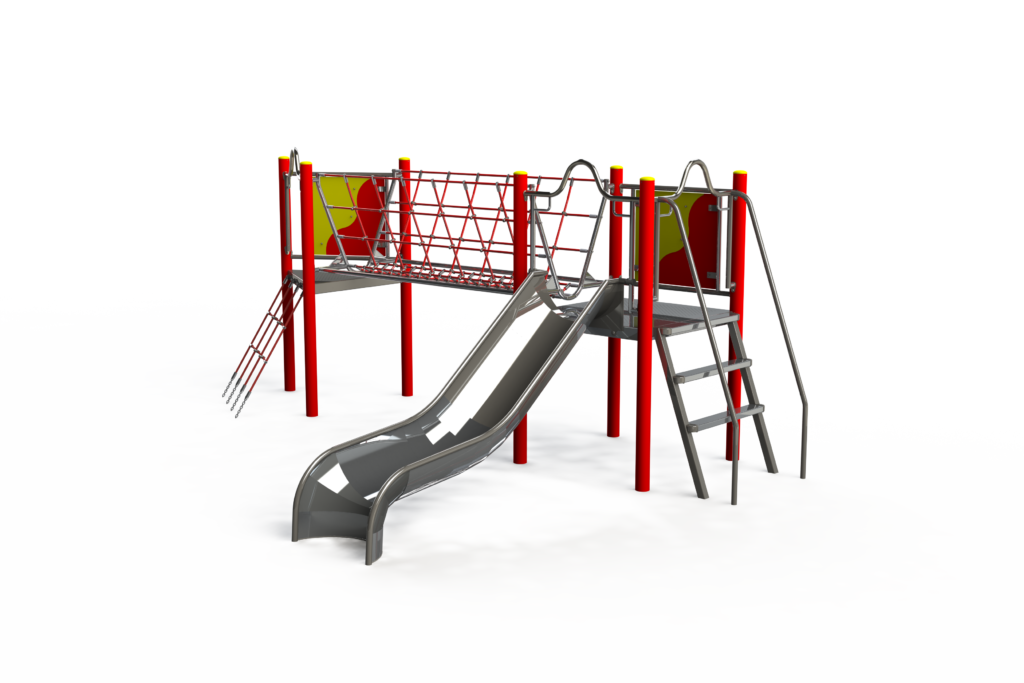

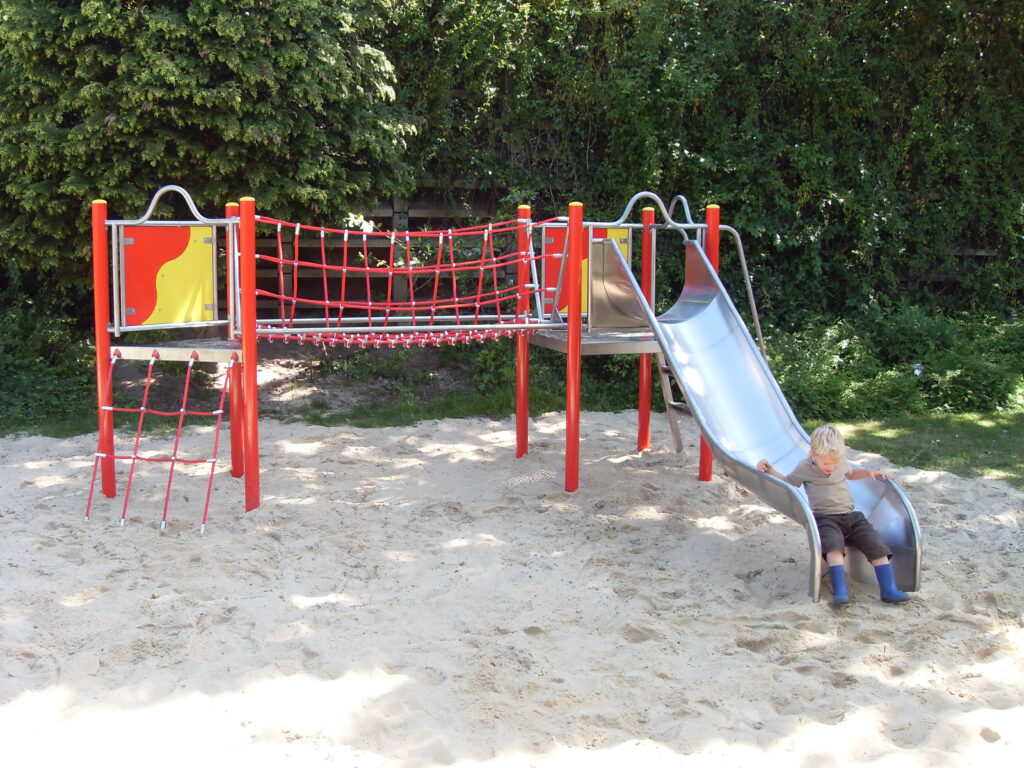

The BYO Abu Dhabi has two climbing platforms where children can stand and play together. Furthermore, the BYO Abu Dhabi has the play elements: climbing net, jungle bridge, ladder, sliding poles and a slide. The BYO Abu Dhabi is standard equipped with red coated posts, yellow/red panels and a red climbing net and jungle net.
Play values of the BYO Abu Dhabi:
- Meeting & Fantasy
- Crawling
- Slide
- Climbing, ladder
- Sliding pole
Download PDF
1011-R05-INS.pdf 167 KB
1011-R05-INS.dwg 7 MB
Maak account aan om meer bestanden te zien
Dimensions
(LxWxH)
4,77 x 3,13 x 2 m
Age
min-max
5 - 10 years
Fall height
1 m
| Tags | Blog Glijden Klettern Klimmen Sliding |
|---|---|
| Article | 1011 |
| Description | BYO Abu Dhabi |
| Age category as of | 5 |
| Age category up to | 10 |
| Length of equipment | 4,77 m |
| Width of equipment | 3,13 m |
| Height of equipment | 2,00 m |
| Safezone length | 7,80 m |
| Safezone width | 6,60 m |
| Fall height | 1 m |
| Foundation m2 (min. calculation) | 55,02 m² |
| Total weight | 379 kg |
| Heaviest part | 68 kg |
| Number of people | 14 |
| Assembly hours (couple) | 18 |
| Materials (inc. percentage) | RVS (95,5) Polyester (4,5) |
| Construction materials | RVS (buis 88,9x3mm en vloer 2,5mm), Polyester touw met stalen kern Ø16 mm, bevestigingsmaterialen: Torx M8x16 en stelschroef M8x10 |
